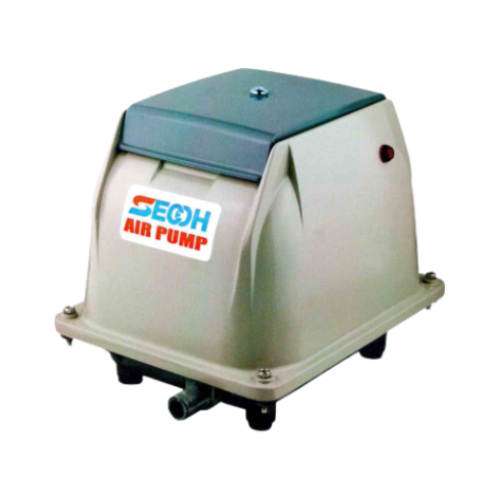

EL Series EL-60 / EL-80-15 / EL-80-17 / EL-100 / EL-120 / EL-150
| Model | Voltage | Frequency | Rate pressure | Air Flow | Power | Net Weight | Sound (1.5m) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VAC | Hz | kPa | PSI | LPM | CFM | W | Lbs. | Kg | dB | ||
| EL-60 | 115 | 60 | 14.7 | 2.1 | 64 | 2.3 | 53 | 18.7 | 8.5 | 41 | |
| 230 | 50 | 14.7 | 2.1 | 63 | 2.2 | 46 | 18.7 | 8.5 | 36 | ||
| EL-80-15 | 115 | 60 | 14.7 | 2.1 | 80 | 2.8 | 60 | 18.7 | 8.5 | 42 | |
| 230 | 50 | 14.7 | 2.1 | 82 | 2.9 | 75 | 18.7 | 8.5 | 38 | ||
| EL-80-17 | 115 | 60 | 16.7 | 2.4 | 85 | 3 | 72 | 18.7 | 8.5 | 43 | |
| 230 | 50 | 16.7 | 2.4 | 85 | 3 | 73 | 18.7 | 8.5 | 38 | ||
| EL-100 | 115 | 60 | 16.7 | 2.4 | 108 | 3.8 | 105 | 18.7 | 8.5 | 46 | |
| 230 | 50 | 16.7 | 2.4 | 102 | 3.6 | 98 | 18.7 | 8.5 | 40 | ||
| EL-120 | 230 | 50 | 19.6 | 2.8 | 123 | 4.6 | 120 | 19.8 | 9 | 47 | |
| EL-150 | 230 | 50 | 19.6 | 2.8 | 150 | 5.3 | 150 | 19.8 | 9 | 55 | |
Perfomance have ± 10% deviation
